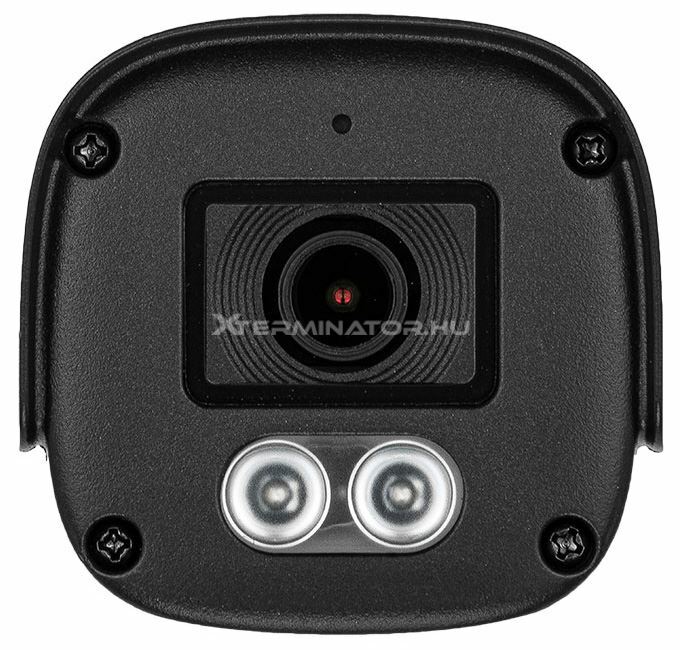

IP kamera Tiandy TC-C321N I3/E/Y/2.8mm

2MP felbontású IP biztonsági kamera 2.8 mm-es optikával és beépített mikrofonnal. - 1920 x 1080 videó felbontás - 30 m IR hatótáv - S+265/H. 265/H. 264 videó tömörítés - Digital WDR - BLC/3D DNR/HLC...

Camera






Image Sensor



1/2.9"CMOS


Min. Illumination



Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR


Shutter Time



1s~1/100000s


Day&Night



IR-cut filter with auto switch (ICR)


Smart IR



Yes


WDR



DWDR


S/N



>37dB


Angle Adjustment



0~360°(P); 0~80°(T); 0~360°(R)


Lens






Lens Type



Fixed focal lens


Focal Length



2.8mm


Lens Mount



M12


Aperture Range



F2.0


Aperture Type



Fixed


Field of View



102.8°(H); 57.6°(V); 117.8°(D)


DORI Distance



Detect:40.0m Observe:15.9m Recognize:8.0m Identify:4.0m


Illuminator






IR LEDs



2


IR Distance



Up to 30m


Wavelength



850nm


Compression Standard






Video Compression



S+265/H.265/H.264B/H.264M/H.264H


Video Bit Rate



32k~4Mbps


Audio Compression



G.711A/G.711U


Audio Sampling Rate



8kHz








Max. Resolution



2MP,1920×1080@30fps


Main Stream



PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480)


Sub Stream



PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240)


BLC



Yes


HLC



Yes


AGC



Yes


3D DNR



Yes


White Balance



Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance


OSD



Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48


Privacy Mask



4 black static areas


Defog



Yes


Feature






General Alarm



Motion Detection


Exceptions Alarm



IP Address Conflict


Network






Protocols



HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast


System Compatibility



ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP


Remote Connection



≤2


Client



Easy7 VMS


Web



IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+


Interface






Communication Interface



1*RJ-45 (10/100 Base-T)


Built-in Mic



Yes


General






Web Client Language



English


Operating Temperature



-30℃~60℃(-22℉~140℉)


Operating Humidity



≤95%RH


Storage Temperature



-30℃~60℃(-22℉~140℉)


Storage Humidity



10%~95%RH(non-condensing)


Power Supply



PoE:IEEE 802.3af,Max. 6W


Protection



Surge4000V; ESD6000V; IP67


Boundary Dimensions



164(L)73(W)73(H)mm


Package Dimensions



180(L)90(W)95(H)mm


GrossWeight



0.3kg
