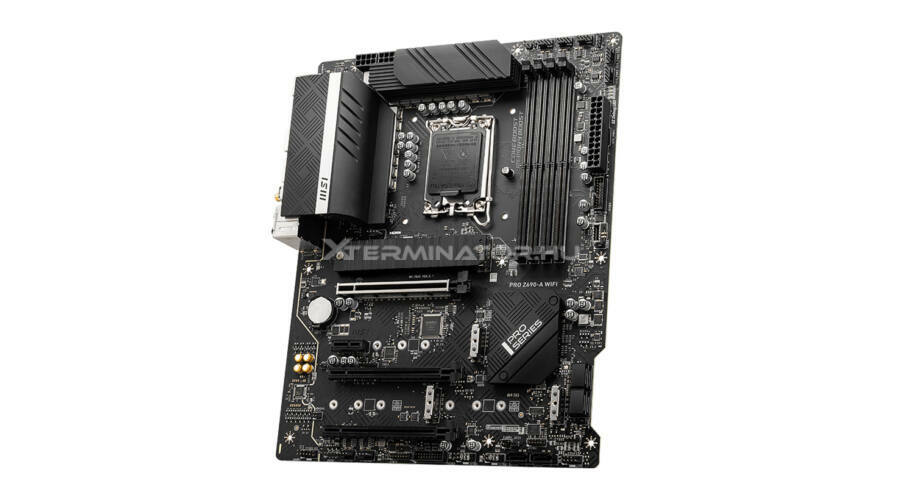

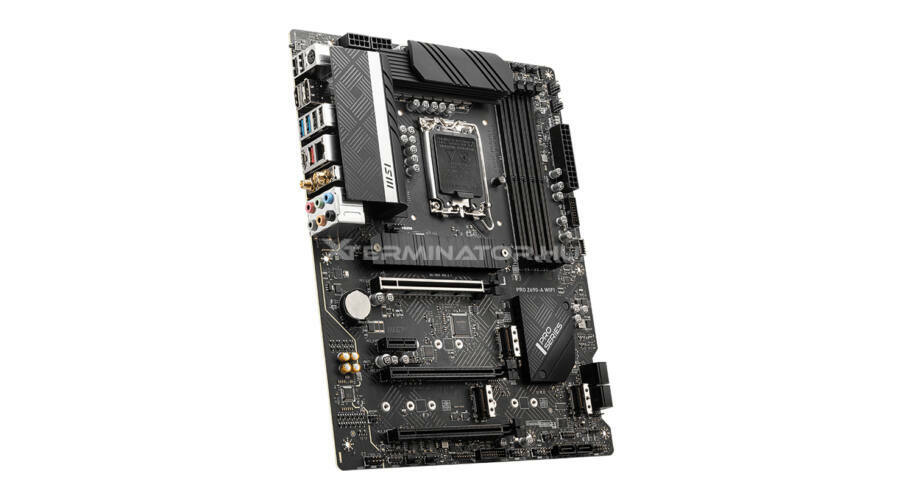

Alaplap MSI PRO Z690-A WIFI Intel Z690 DDR5 LGA1700 ATX

Processzor
Processzor gyártója
The manufacturer that produced the processor. Intel
Processzor-foglalat
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. LGA 1700
Kompatibilis processzor sorozata
A processor which is compatible with this device Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
SMP-processzorok maximális száma 1
Memória
Támogatott memóriatípusok
Types of memory which can be used with the product. DDR5-SDRAM
Memória bővítőhelyek száma 4
Memória bővítőhelyek típusa
A memory slot DIMM
Memóriacsatornák Dual-channel
Nem ECC
Támogatott memória órajelsebességi fokozatok
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. 4000,5400,6400 Mhz
Maximális belső memória
The maximum internal memory which is available in the product. 128 GB
Nem pufferelt memória
Tárolásvezérlők
Támogatott tároló meghajtó típusok
The type of storage drives the device is compatible with. HDD & SSD
Támogatott tárolóeszköz-meghajtó csatlakozási felületek M.2, SATA III
RAID támogatás
The device uses RAID
RAID-szintek
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways 0, 1, 5, 10
Grafika
Párhuzamos feldolgozási technológia támogatása
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally Crossfire
Belső ki-/bemeneti csatlakozók
USB 2.0 csatlakozók
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed") 2
USB 3.2 Gen 1 (3.1 Gen 1) csatlakozók
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008 1
SATA III-csatlakozók száma
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface 6
Elülső panel hangcsatlakozója
ATX tápegység csatlakozója (24 tűs)
Processzor ventilátor csatlakozó
Gépházi ventilátorok száma 6
Gépház-nyitását érzékelő csatlakozó
TPM-csatlakozó
12V tápcsatlakozók
Hátlapi ki-/bemeneti csatlakozók
USB 2.0 portok száma
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed") 4
USB 3.2 Gen 1 (3.1 Gen 1) A típusú portok száma 2
USB 3.2 Gen 2 (3.1 Gen 2) A típusú portok száma 1
USB 3.2 Gen 2x2 C bemenetek száma 1
Ethernet LAN (RJ-45) portok
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
HDMI portok mennyisége
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor 1
HDMI-verzió 2.1
Hátlapi ki-/bemeneti csatlakozók
DisplayPort száma
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor 1
DisplayPort verzió 1.4
S/PDIF kimeneti port
S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Digitális hang optikai kimenete
The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector. 1
WiFi-AP antenna jackdugó 2
Hálózat
Ethernet/LAN csatlakozás
An Ethernet LAN (Local Area Network) interface is present
Ethernet csatlakozó típusa 2.5 Gigabit Ethernet
LAN-vezérlő Intel I225-V
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
A legfontosabb Wi-Fi szabvány
Connection of this device is done via Wi-Fi in a high standard. Wi-Fi 6E (802.11ax)
Wi-Fi szabványok
The type of wireless local area network (LAN). It can be ad-hoc 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers
Bluetooth verzió
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). 5.2
Jellemzők
Alaplapi chipkészlet
The chipset connects the microprocessor to the rest of the motherboard. Intel Z690
Audió chip Realtek ALC897
Audió kimeneti csatornák
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. 7.1 csatornák
Járulékos komponens
What this product is used as a part of (component for). PC
Alaplap kialakítása
Design of the motherboard (ATX ATX
Alaplapi lapkakészlet-család
The category of motherboard chipset e.g. Intel Intel
Rögzítőfuratok száma 9
Harmonized System (HS)-kód 84733020
Bővítő helyek
PCI-expressz x1 (Gen 3.x) bővítőhelyek 1
PCI-expressz x16 csatlakozók 3
M.2 (M) rések száma 4
BIOS
BIOS típusa
The BIOS (Basic Input/Output System) initializes and tests system hardware components UEFI AMI
A CMOS átkötés törlése
Tömeg és méretek
Szélesség
The measurement or extent of something from side to side. 305 mm
Mélység
The distance from the front to the back of something. 244 mm
Magasság
The measurement of the product from head to foot or from base to top. 65 mm
Csomagolás tartalma
Kábelek mellékelve SATA
Meghajtóprogramok mellékelve
További jellemzők
Tömeg
Weight of the product without packaging (net weight). If possible 1 kg
