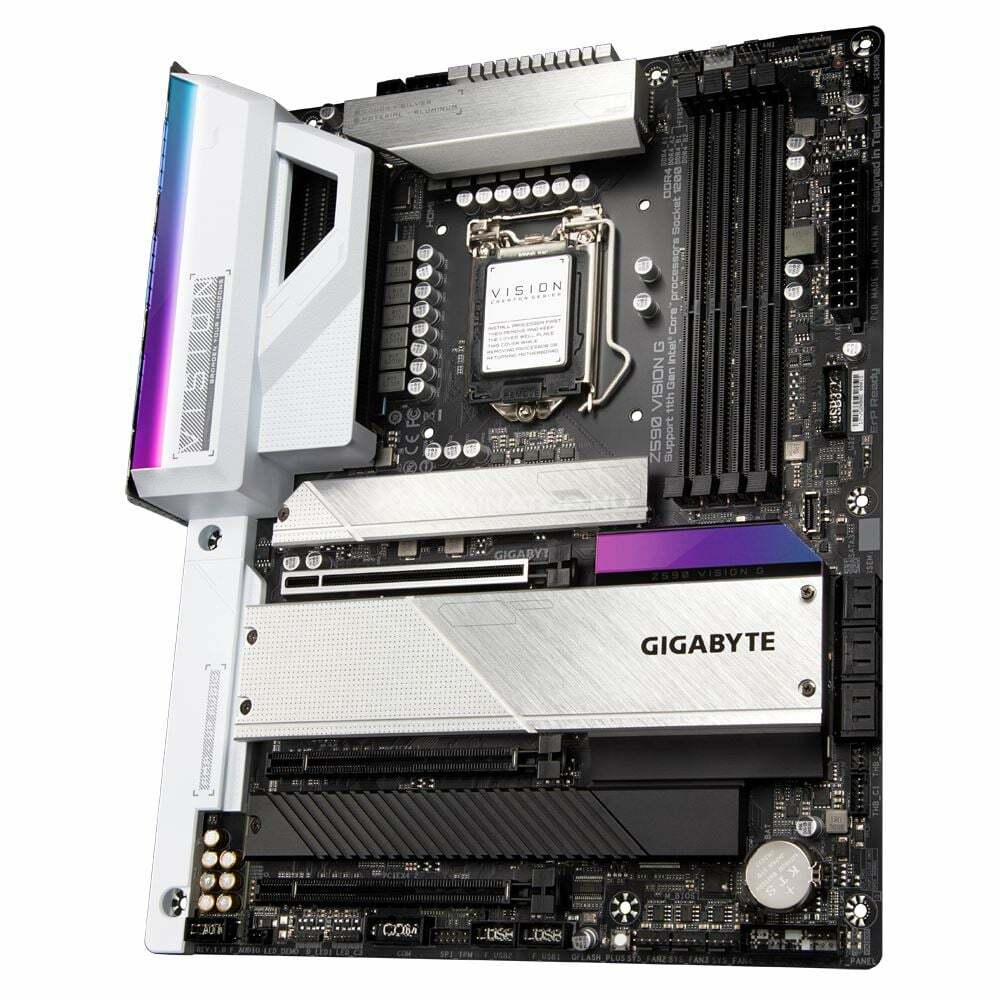

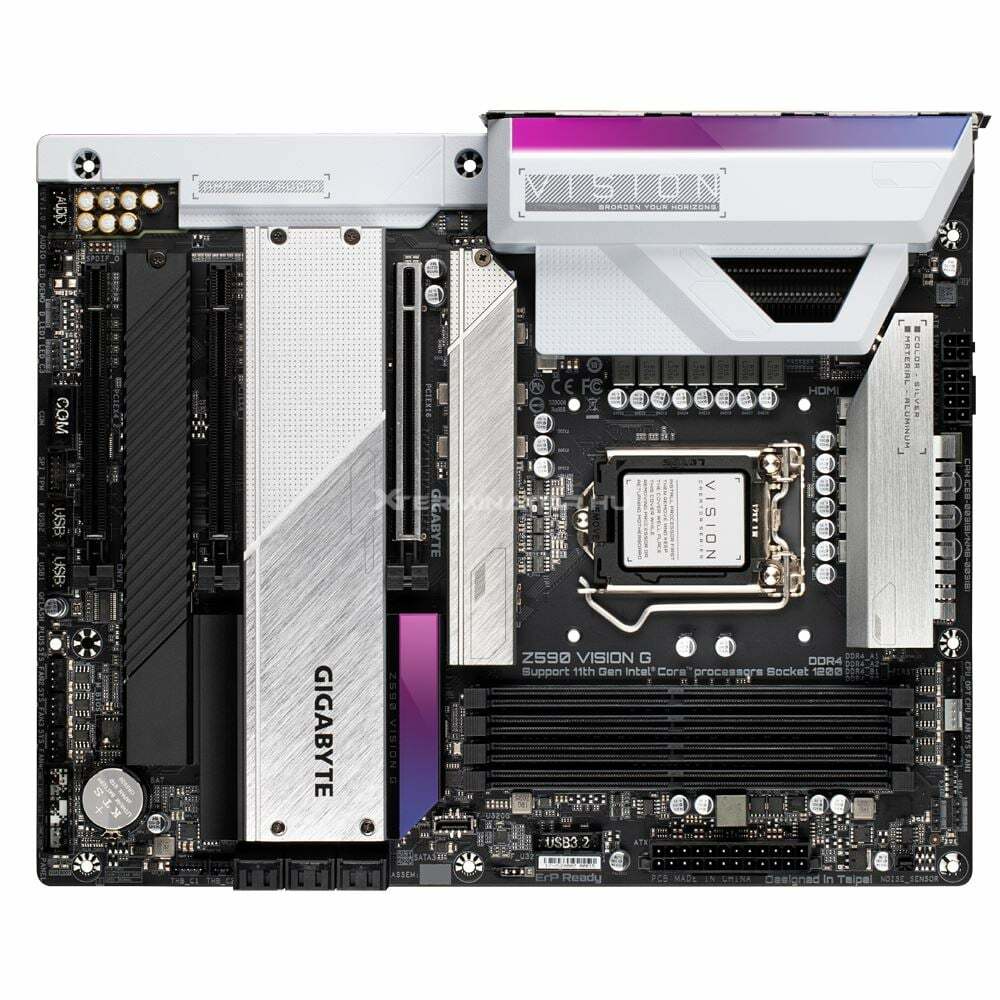

Alaplap Gigabyte Z590 VISION G

CPU Foglalat Socket 1200
Chipset Intel Z590
Processzor gyártó Intel
Memória típusa DDR4
Videókártya
Videokártya típusa PCI-Express
Integrált videókártya Van
Csatlakozók
Memória foglalatok száma 4
Összes PCI-Express 16x csatlakozó száma 3
PCI-Express 8x csatlakozók száma Nincs
PCI-Express 4x csatlakozók száma Nincs
PCI-Express 1x csatlakozók száma Nincs
PCI csatlakozók száma Nincs
Portok
SATA 3 csatlakozók száma 6
SATA 2 csatlakozók száma Nincs
mSATA csatlakozók száma Nincs
m.2 csatlakozók száma 1
SATA Express csatlakozók száma Nincs
További tulajdonságok
Max. memória mérete 128 GB
Integrált hangkártya Van
Hangkártya csatorna 7.1
Bluetooth Nincs
RAID vezérlő Van
Méret szabvány ATX

CPULGA1200 package:
11th Generation Intel ® Core i9 processors / Intel ® Core i7 processors / Intel ® Core i5 processors
10th Generation Intel ® Core i9 processors / Intel ® Core i7 processors / Intel ® Core i5 processors / Intel ® Core i3 processors/ Intel ® Pentium ® processors / Intel ® Celeron ® processors*
* Limited to processors with 4 MB Intel ® Smart Cache, Intel ® Celeron ® G5xx5 family.
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information. )
Chipset
Intel ® Z590 Express Chipset
Memory
11th Generation Intel ® Core i9/i7/i5 processors:
Support for DDR4 5333(O. C. )/ DDR4 5133(O. C. )/DDR4 5000(O. C. )/4933(O. C. )/4800(O. C. )/ 4700(O. C. )/ 4600(O. C. )/ 4500(O. C. )/ 4400(O. C. )/ 4300(O. C. )/4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3800(O. C. ) / 3733(O. C. ) / 3666(O. C. ) / 3600(O. C. ) / 3466(O. C. ) / 3400(O. C. ) / 3333(O. C. ) / 3300(O. C. ) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel ® Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel ® Core i5/i3 /Pentium ® /Celeron ® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information. )
Onboard GraphicsIntegrated Graphics Processor-Intel ® HD Graphics support:
1 x USB Type-C ® port, supporting USB Type-C ® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz.
* Support for drawing tablets and 20V@3A of power delivery.
*Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Supported graphics specifications may vary depending on CPU or graphics card used. )
Audio
Realtek ® ALC4080 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel ® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
(The PCIEX16 slot conforms to PCI Express 4.0 standard. )*
*Supported by 11th Generation processors only.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
(The PCIEX4 slot conforms to PCI Express 3.0 standard. )
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage InterfaceCPU:
1 x M. 2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
* Supported by 11th Generation processors only.
2 x M. 2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)
Chipset:
1 x M. 2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors.
Intel ® Optane Memory Ready
USBChipset:
2 x USB Type-C ® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
1 x USB Type-C ® port on the back panel, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
