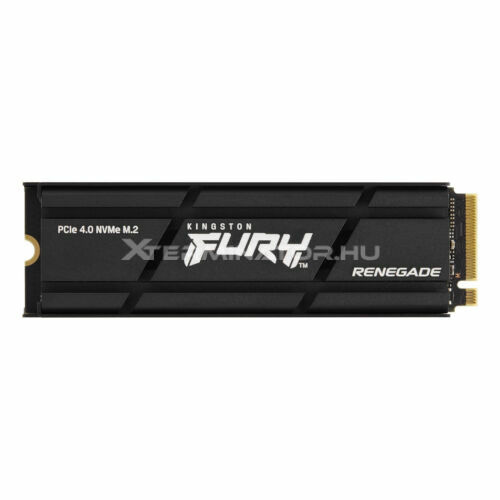

SSD 2TB Kingston FURY Renegade M.2

Kialakítás M.2
Kapacitás 2000 GB
NAND flash típusa TLC
Maximális SSD olvasási sebesség 7300 MB/s
Maximális SSD írási sebesség 7000 MB/s
Hűtőborda Van
LED megvilágítás Nincs
PCI-e generáció 4.0
Csatlakozók
PCI-e
Méretek
Szélesség 80 mm
Magasság 3.5 mm
Mélység 22 mm
Tömeg 50 g
Form factor
M. 2 2280

Interface
PCIe 4.0 x4 NVMe

Capacities2
500GB, 1TB, 2TB, 4TB

Controller
Phison E18

NAND
3D TLC

Sequential read/write1
500GB 7,300/3,900MB/s
1TB 7,300/6,000MB/s
2TB 7,300/7,000MB/s
4TB 7,300/7,000MB/s

Random 4K read/write1
500GB up to 450,000/900,000 IOPS
1TB up to 900,000/1,000, 000 IOPS
2TB up to 1,000, 000/1,000, 000 IOPS
4TB up to 1,000, 000/1,000, 000 IOPS

Total Bytes Written (TBW)3
500GB 500TBW
1TB 1.0PBW
2TB 2.0PBW
4TB 4.0PBW

Power consumption
500GB 5mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write
1TB 5mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write
2TB 5mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write
4TB 5mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write

Storage temperature
-40°C~85°C

Operating Tempetemperaturerature
0°C~70°C

Dimensions
Heat spreader:
80mm x 22mm x 2.21mm (500GB-1TB)
80mm x 22mm x 3.5mm (2TB-4TB)
Heatsink:
80mm x 23.67mm x 10.5mm

Weight
Heat spreader:
500GB-1TB 7g
2TB-4TB 9.7g
Heatsink:
500GB-1TB 32.1g
2TB-4TB 34.9g

Vibration operating
2.17G peak (7-800Hz)

Vibration non-operating
20G peak (20-1000Hz)

MTBF
1,800, 000 hours

Warranty/Support4
Limited 5-year warranty with free technical support
